| Place of Origin: | Wuhan, China |
|---|---|
| Brand Name: | BonninTech |
| Certification: | CE, ISO |
| Model Number: | BN-8026 |
| Minimum Order Quantity: | 1 set |
| Price: | USD1000-2800/set |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets/month |
| Standard: | ISO5628, ISO2493 | Test Range: | (0~500) MN.m, (0~10000) MN |
|---|---|---|---|
| Accuracy: | ±0.1mN Below 50mN, The Rest ±0.5% | Color: | Black And White |
| Voltage: | 220V/110V | ||
| High Light: | BN-8026 Cardboard Bending Stiffness Tester,Digital Paper Stiffness Tester 7IN,Lab Testing Instruments Stiffness Tester |
||

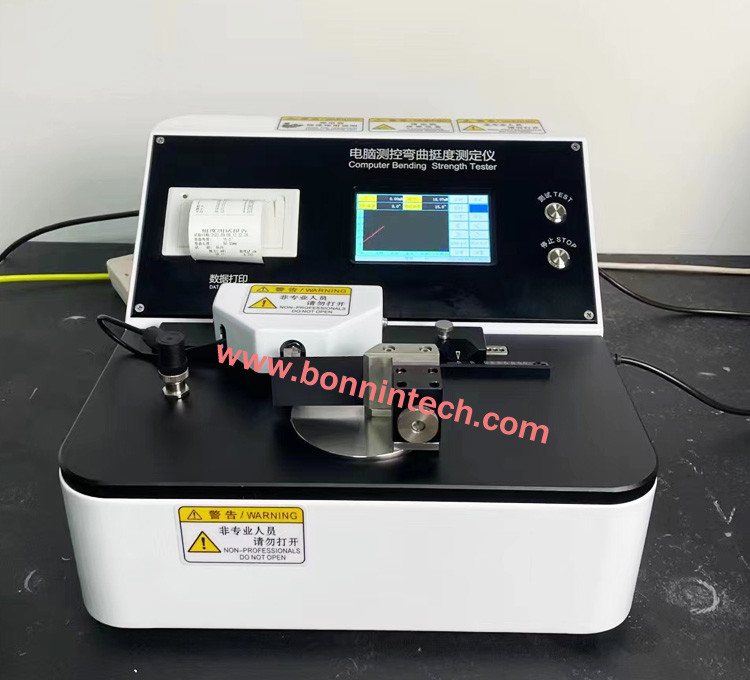

BN-8026 Digital Paper Cardboard Bending Stiffness Tester / Folding Bending Stiffness Testing Machine
Application:
This bending stiffness tester used for detecting the bending stiffness of paper and paperboard, which can be used to simultaneously detect the bending stiffness properties of sheet materials such as films, mica sheets, graphite sheets, and composites.
Standards: GB/T 2314, GB/T 2236, ISO 5628, ISO 2493
Technical parameters:
| Measuring range | (0~500) mN.m, (0~10000) mN, choose according to actual needs |
| Accuracy | ±0.1mN below 50mN, the rest ±0.5% |
| Span range | span length 5~60mm |
| Angular velocity control | 0.5 – 50 °/sec adjustable |
| Bending time | choose different bending time according to the elasticity of the material, and can be set by yourself within the range of 5~35s |
| Bending angle | (1~92º infinitely adjustable), common angle (±7.5º or ±15º) ±0.3º |
| Operation interface | 7 inch touch screen operation interface, visual menu operation |
| Sensor Replacement | Quick sensor replacement |
| Printout | Thermal printer |
| Dimensions | 350mm*330mm*350mm |
| Weight | 25kg |
Technical parameters (Special sampler for bending stiffness):
Sampling size: 80*38mm bending stiffness
Tool material: chrome steel, adding molybdenum and vanadium, 10,000-wire high-precision wire cutting CNC fine grinding, high temperature quenching for 3 times, higher durability
Parallelism of the two long sides: ≤0.015mm
Sampling thickness: (0.1~1.2)mm
Dimensions: About300*90*90mm
Weight: 10kg
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
