ISO5628 ISO2493 Paper Testing Machine Cardboard Bending Stiffness Lab Testing Instruments

Basic Information
Place of Origin: Wuhan, China
Brand Name: BonninTech
Certification: CE, ISO
Model Number: BN-8026
Minimum Order Quantity: 1 set
Price: USD1000-2800/set
Packaging Details: Standard export carton box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100 sets/month
Standard: ISO5628, ISO2493 Test Range: (0~500) MN.m, (0~10000) MN
Accuracy: ±0.1mN Below 50mN, The Rest ±0.5% Color: Black And White
Voltage: 220V/110V
High Light:

ISO5628 paper testing instruments

,

ISO2493 Paper Testing Machine

,

Lab Testing Instruments ISO2493

Application:

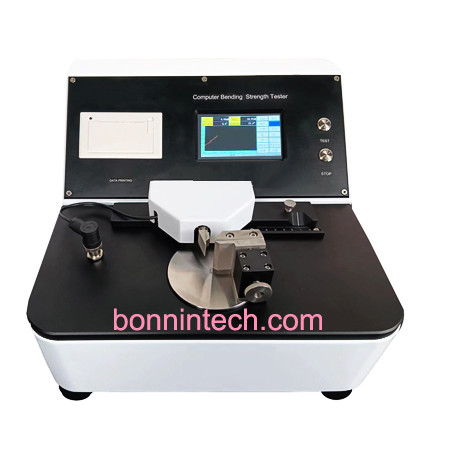

This bending stiffness tester used for detecting the bending stiffness of paper and paperboard, which can be used to simultaneously detect the bending stiffness properties of sheet materials such as films, mica sheets, graphite sheets, and composites.



Standards: GB/T 2314, GB/T 2236, ISO 5628, ISO 2493



Technical parameters:

Measuring range (0~500) mN.m, (0~10000) mN, choose according to actual needs
Accuracy ±0.1mN below 50mN, the rest ±0.5%
Span range span length 5~60mm
Angular velocity control 0.5 – 50 °/sec adjustable
Bending time choose different bending time according to the elasticity of the material, and can be set by yourself within the range of 5~35s
Bending angle (1~92º infinitely adjustable), common angle (±7.5º or ±15º) ±0.3º
Operation interface 7 inch touch screen operation interface, visual menu operation
Sensor Replacement Quick sensor replacement
Printout Thermal printer
Dimensions 350mm*330mm*350mm
Weight 25kg



Technical parameters (Special sampler for bending stiffness):

Sampling size: 80*38mm bending stiffness

Tool material: chrome steel, adding molybdenum and vanadium, 10,000-wire high-precision wire cutting CNC fine grinding, high temperature quenching for 3 times, higher durability

Parallelism of the two long sides: ≤0.015mm

Sampling thickness: (0.1~1.2)mm

Dimensions: About300*90*90mm

Weight: 10kg



ISO5628 ISO2493 Paper Testing Machine Cardboard Bending Stiffness Lab Testing Instruments 0

ISO5628 ISO2493 Paper Testing Machine Cardboard Bending Stiffness Lab Testing Instruments 1

FAQ 1. Are you a factory or trading company?

We are a factory.



FAQ 2. Can you supply OEM?

OEM is available.



FAQ 3. What's the MOQ ?

(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.



FAQ 4. How about the order processing and lead time?

After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.



FAQ 5. What quality will be ensured?

100% new and quality inspection before delivery from factory.

Stable export box for good package.



FAQ 6. Can you guide the working?

The machine will deliver with English display, English manual and video for installation and operation.



FAQ 7. How can your engineer replace parts if they are not beside the machine?

Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
